| Price | RM144.64 |
| Product SKU | MY-2046A |
| Brand | MITUTOYO |
| Availability | 3 |
| Shipping Fee |
Malaysia
Free for certain area only
|
| Quantity |
|
Description
Highlight
- READY STOCK IN MALAYSIA
- Brand: Mitutoyo

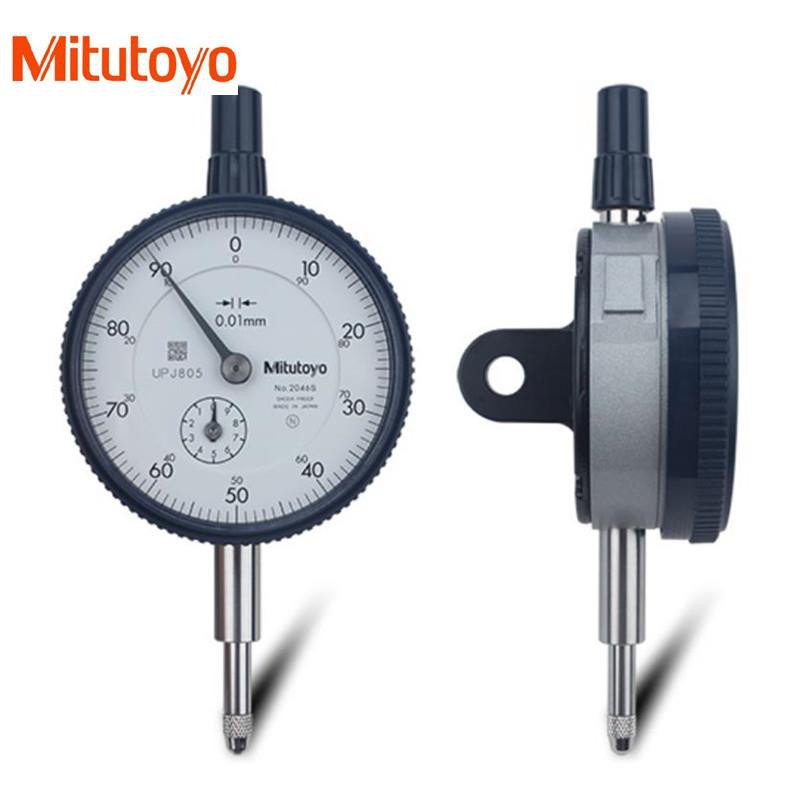

- Model: 2046S Dial Indicator with Lug Back (LATEST 2022 NEW MODEL 2046A) C/W FACTORY INSPECTION CERT.
- Range: 10mm
- Graduation: 0.01mm
- - Standard 0.01mm graduation dial gauges having an outer frame with an outside diameter of 57mm. - All types come with limit pins and an outer frame clamp as standard.
- - Secured adhesion between the outer frame and crystal as well as the use of an O-ring ensure - countermeasures against water and oil permeation via the front face.
- - The stem spindle is made of high-strength quench-hardened stainless steel which resists strenuous use.
- - A carbide contact point is used.
- - The grand gear uses stainless steel that is resistant to wear and deformation.
- - Application of a hard coating on the surface of the crystal makes the gauge highly scratch- and chemical-resistant.
- Technical Data
- Range: 10mm
- Graduations: 0.01mm
- Range/Rev: 1mm
- Dial Reading: 0-100
- Type: with lug
- Accuracy: +/- 0.013mm
- Measuring Force: 1.4N or less
- Stem/Shank: 8mm
- Contact Point: M2.5 x 0.45 Thread
- Series 2 dial indicators are Mitutoyo’s most popular and have the widest application.
- FEATURES
- Standard 0.01mm graduation dial gages having an outer frame with an outside diameter of 57mm. All types come with limit pins and an outer-frame clamp as standard.
- The outer clamp and lifting lever (optional) can be attached to either the right or left side. These parts can be easily installed and removed without tools.
- Secured adhesion between the outer frame and crystal, as well as the use of an O-ring, protect against water and oil permeation via the front face.
- The stem spindle is made of high-strength quench-hardened stainless steel for longevity.
- A carbide contact point is used.
- The grand gear uses stainless steel that is resistant to wear and deformation.
- Application of a hard coating on the surface of the crystal makes the gage highly scratch- and chemical-resistant.
Reviews (0)
view all
back
What's in the box
- 1 x Mitutoyo 2046A Dial Indicator With Lug Back 10mm
